Waterproof 300mm LED Traffic Light With 3 Full Balls For Traffic Safety
Characteristics:
1)Light intensity automatically adjustable.
2)Low power consumption(save up to 80% energy compared with traditional incandescent lamps) .
3)Visual angle larger.
4)Long lifetime(more than 50,000hours).
5)Nice design&Excellent appearance.
6)Multi-ply sealed water resistant.
7)Exclusive optical lens,good Color uniformity.
8)Power supply is common for all over the world.
Description:
Traffic lights normally consist of three signals, transmitting meaning to drivers and riders through colours and symbols including arrows and bicycles. The regular traffic light colours are red, yellow and green, arranged vertically or horizontally in that order. Although this is internationally standardised,[4] variations exist on national and local scales as to traffic light sequences and laws.
Specifications:
| Diam. 300mm | Luminous(mcd) | Photo | Emission Color | Led quantity | Wavelength(nm) | Visual Angle | Power Consumption |
| Left/Right | Down |
| ≥4000 |  | Red | 95pcs | 625±5 | 30° | ≤15W |
| ≥4000 |  | Yellow | 95pcs | 590±5 | 30° | ≤15W |
| ≥4000 |  | Green | 95pcs | 505±5 | 30° | ≤15W |
Packing Information:
| Packing Size | Quantity | Net Weight.(kg) | Gross Weight (kg) | Wrapper | Volume(m3) |
| 1240*410*210mm | 1 unit/Carton | 10.00 | 12.00 | K=K Carton | 0.10 |
| Lamp | L- Bracket | Sun Visor | Decorative Board | M4X10 Screw | M4X8 Screw | Instruction | Certificate |
| 1 | 2 | 3 | 4 | 32 | 4 | 1 | 1 |

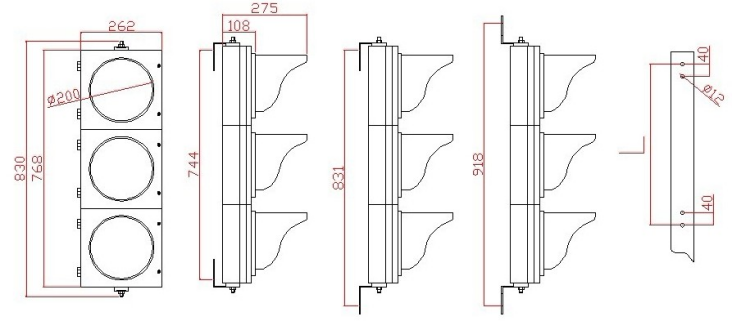

Drawing
The instruction of wire connection:
Light color corresponds to the wire color: black wire for the common, the red wire for the red light, the yellow wire for the yellow light and the green wire for the green light.

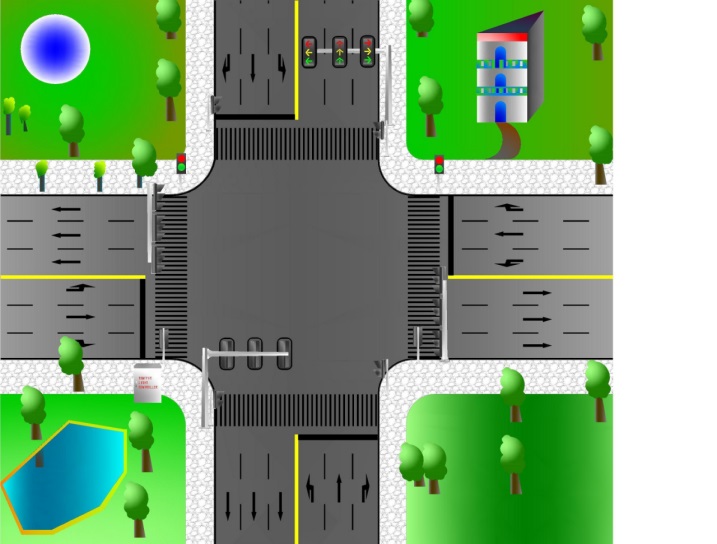

The Drawing of installation in the road crossing
