Aluminum underground solar road studs red color solar road stud
How do solar road studs work?
“solar road stud definition”
The solar panel on the top of the solar road stud absorbs solar energy in the daytime, which can be transformed into electrical energy and stored inside the accumulator, and at night, the electricity in the storage device can be automatically converted into light energy (controlled by the photoelectric switch).
Quick Detail:
· Die-casting aluminum Shell
· Anti High-temperature
· IP68 protect
· CE approval
· 1 Years Warranty

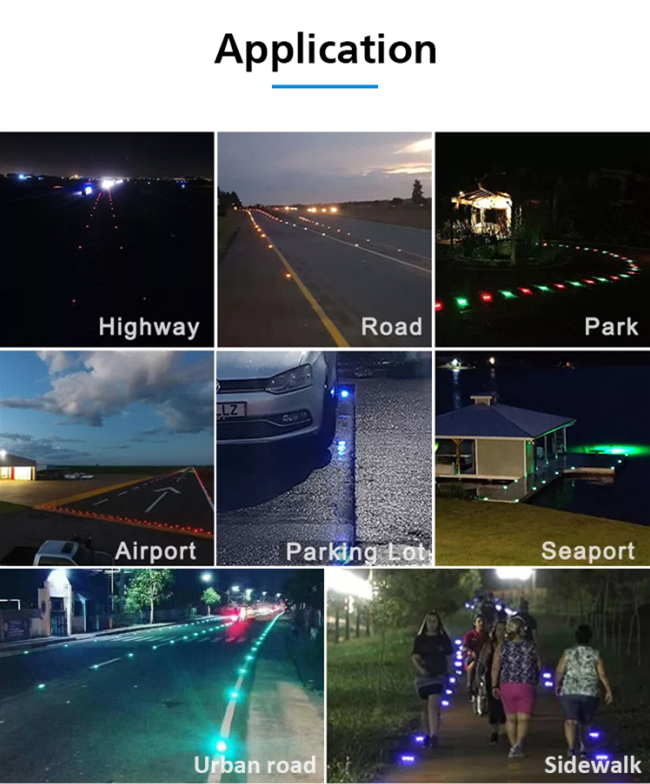

Application
1,Dangerous blind corners and sharp curves,black spots and poorly lit areas
2,Areas with unpredicted wearther conditions( constal roads,foggy areas,wet and rainy regions.)
3,Jiont intersections on and off ramps,center lines and diveders.
4,Entrance warnings,carpool lanes,bridge,cross and side walks
5,Guidance line,traffic islands,roundabouts and mountain roads
6.taxiways at airport,bike and pedestrians lanes,abroad ships and watercraft
7, entertainment areas,parking lots,hotel entrance and gas station,
Specifications:
| Model | CS-SR-829 |
| Solar Panel | 2.5V/500MA mono-crystalline |
| Storage Components | 1.2V/1200MAH High temperature NI-MH Battery |
| Lighting Time | 100h after fully charged |
| Work mode | Flashed for 120times per minute or Stable |
| LED Color | Red,Yellow,Blue,Green,White |
| LED Qty | 6PCS Diameter 10mm High Brightness LED |
| Visual Distance | ＞1000meters |
| Life Span | 3-5Years |
| Work Temperature | -20℃～+80℃ |
| Protect Level | IP68,Can work under water |
| Material | Anti-UV PC+silver coating Aluminum casing |
| Weight | 1200g |
| Products Size | Diamter:43mm height:47mm |
| Package | Carton size 38*27*28CM,24pcs per carton |
Notices:
· 1. Open the packaging, check the products carefully, and take them gentely.
· 2. It should install it outside to get better sunshine
· 3. It should charge it and check it lighting before installation
How to install
• Close the road
• Check if the solar stud charges and discharges normally
• Identify the place for installation
• Drill the hole with drill machine
• Inject the epoxy glue or cement into the hole and take the solar road studs into the hole,
make sure the solar road studs flush with the ground.
• Wait 8 hours for glue drying before open the road

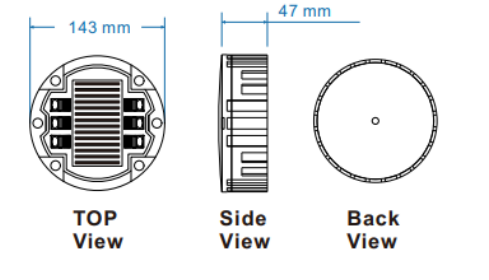

size:
Company information:
Shenzhen CadSolar Technology Co., Ltd, located in Shenzhen, is a hi-tech enterprise specialized in manufacturing solar& LED traffic products. With "Technology Innovation , Friendly Environment , Green Future” motto, Shenzhen CadSolar creates many solar LED traffic products step by step. After 6 years of efforts, most of our products are exported to Germany, France, Australia, New Zealand, Saudi Arabia, Dubai, Indonesia, Malaysia, Vietnam,South Africa, Kenya,Brasil, Chile etc...
Our Main Products as belowing:
A. Solar road studs/reflective road studs
B. Solar led warning light
C. Solar Led traffic signs
D. Solar led traffic light
E. Led traffic signal light
FAQ
Q1. Can I have a sample order for solar road studs?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,7-10 working days for mass production.
Q3. Do you have any MOQ limit for solar road studs order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also option
